Two-stroke engines have been a staple in the world of motorsports and small engines for decades. Their simplicity, lightweight design, and high power-to-weight ratio make them an attractive choice for many applications. However, to get the most out of a 2 stroke engine, it’s essential to understand the intricacies of its port timing. The port timing chart is a critical tool that helps engine builders and tuners optimize the engine’s performance by precisely controlling the opening and closing of the intake and exhaust ports.
The 2 stroke port timing chart is a graphical representation of the engine’s port timing, showing the relationship between the crankshaft position and the port opening and closing events. By analyzing this chart, engine builders can identify areas for improvement, such as optimizing the port timing to improve power output, reduce emissions, or enhance engine reliability. In this article, we’ll delve into the world of 2 stroke port timing charts, exploring their importance, types of ports, and how to read them effectively.

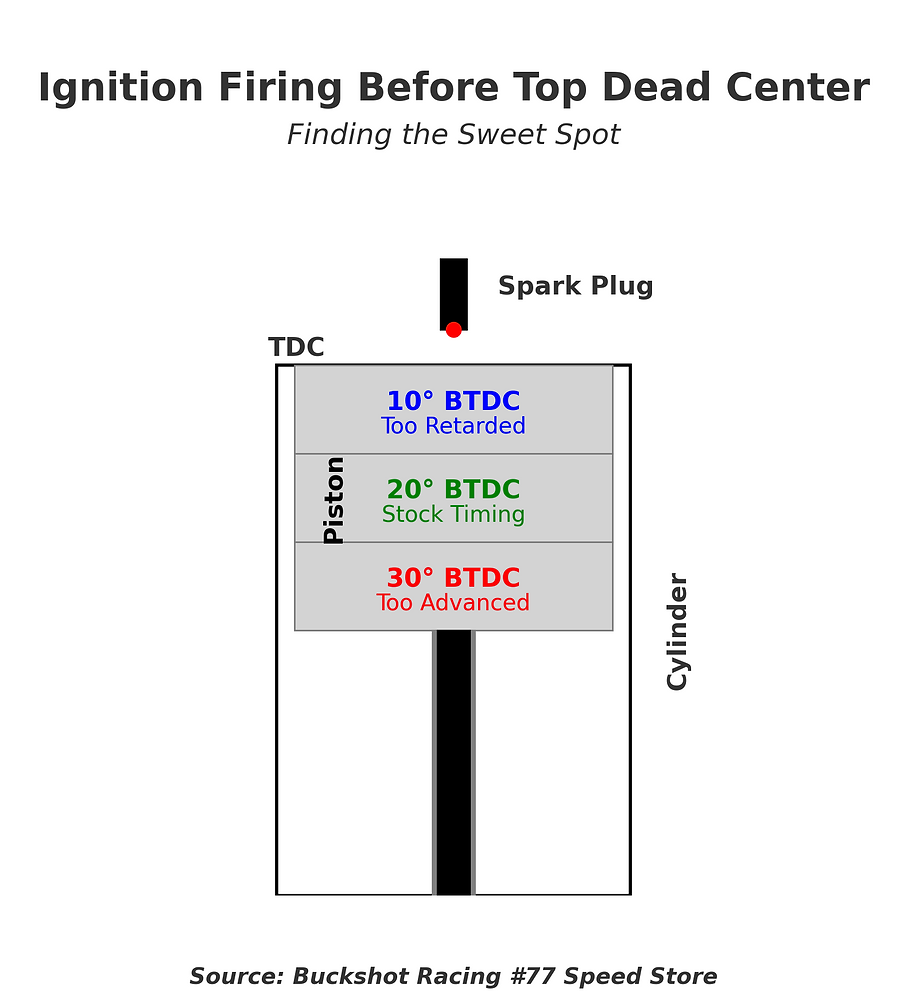

Max Timing Guidance For 2 Stroke Outboards
Understanding 2 Stroke Port Timing
To understand 2 stroke port timing, it’s crucial to grasp the basics of how a 2 stroke engine works. The engine’s cycle consists of two strokes: the power stroke and the exhaust stroke. During the power stroke, the piston moves down, and the spark plug ignites the fuel-air mixture, producing power. The exhaust stroke follows, where the piston moves up, and the exhaust port opens, allowing the exhaust gases to escape. The port timing chart shows the precise timing of these events, ensuring that the engine runs efficiently and effectively.

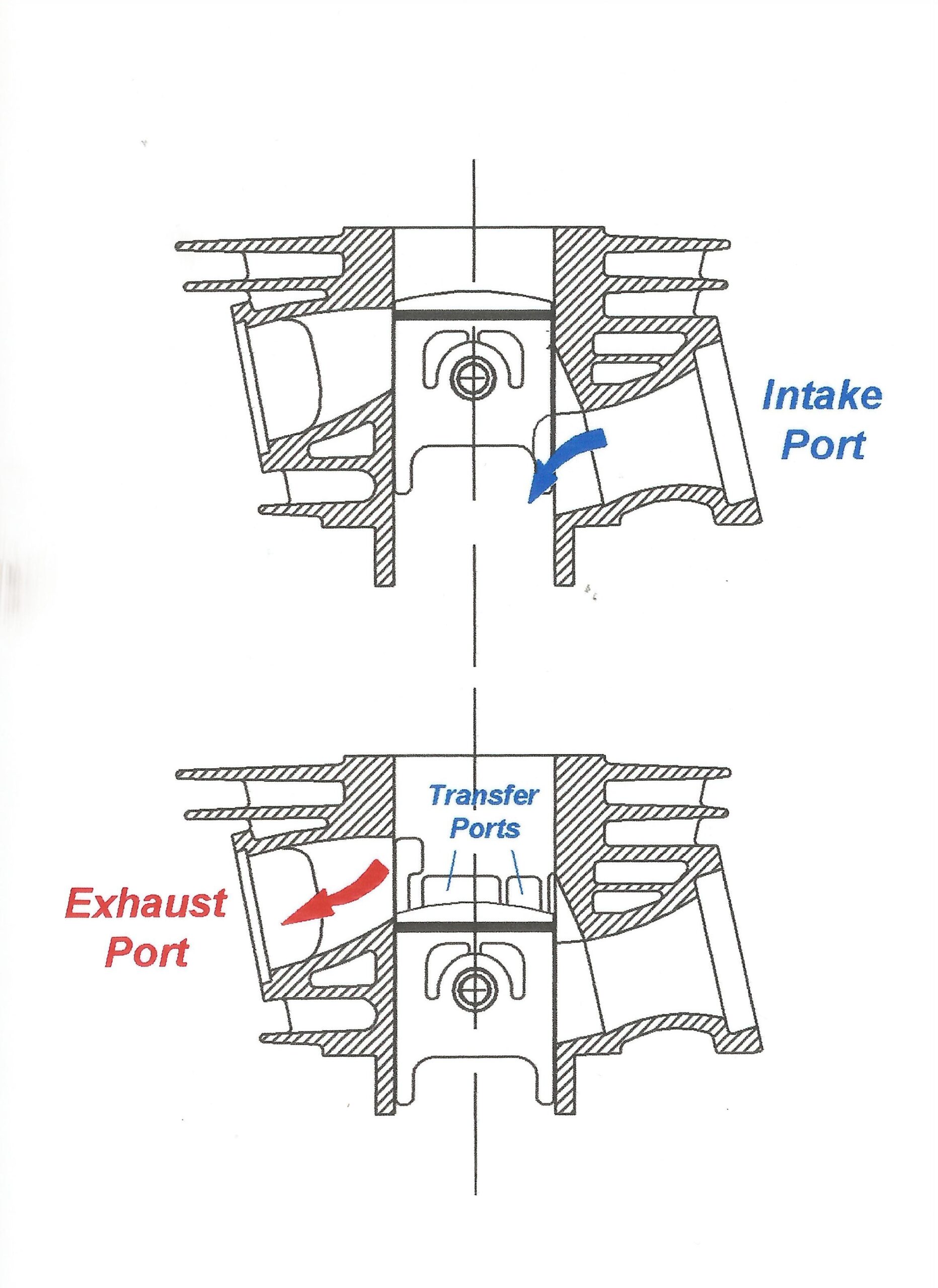

Two Stroke Talk
Types of Ports in a 2 Stroke Engine
There are several types of ports in a 2 stroke engine, each with its unique characteristics and functions. The intake port, exhaust port, and transfer port are the most common types. The intake port allows the fuel-air mixture to enter the combustion chamber, while the exhaust port enables the exhaust gases to exit. The transfer port, on the other hand, connects the crankcase to the combustion chamber, allowing the fuel-air mixture to transfer during the intake stroke. Understanding the different types of ports and their functions is vital for optimizing the engine’s performance using the port timing chart.
Reading a 2 Stroke Port Timing Chart
Reading a 2 stroke port timing chart requires a basic understanding of the engine’s mechanics and the chart’s layout. The chart typically shows the crankshaft position on the x-axis and the port opening and closing events on the y-axis. By analyzing the chart, engine builders can identify the exact timing of the port events, allowing them to make adjustments to optimize the engine’s performance. For example, by adjusting the port timing, engine builders can improve the engine’s power output, reduce emissions, or enhance engine reliability. Effective use of the port timing chart is critical for getting the most out of a 2 stroke engine.

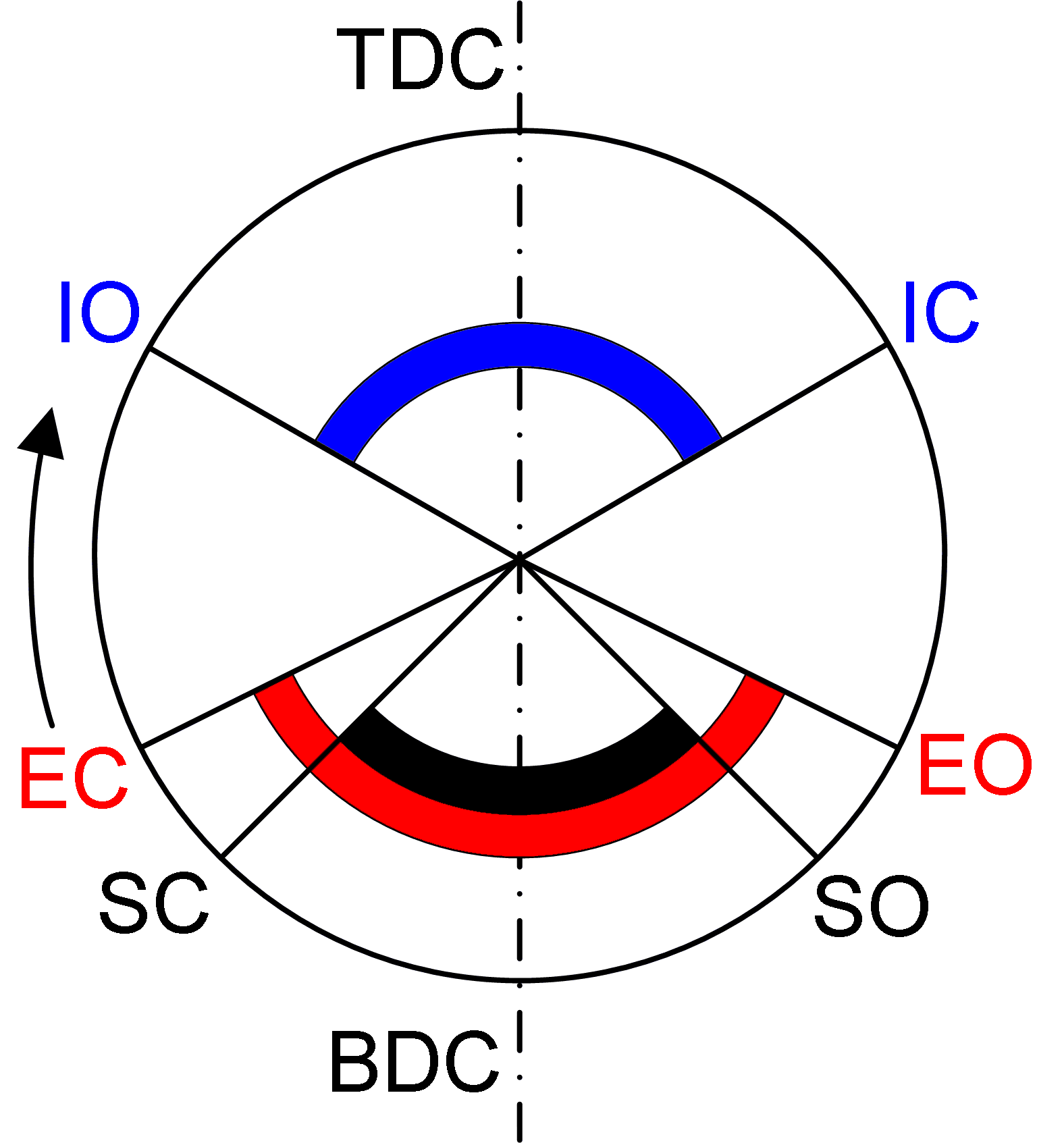

File Port Timing 2T Png Wikimedia Commons
